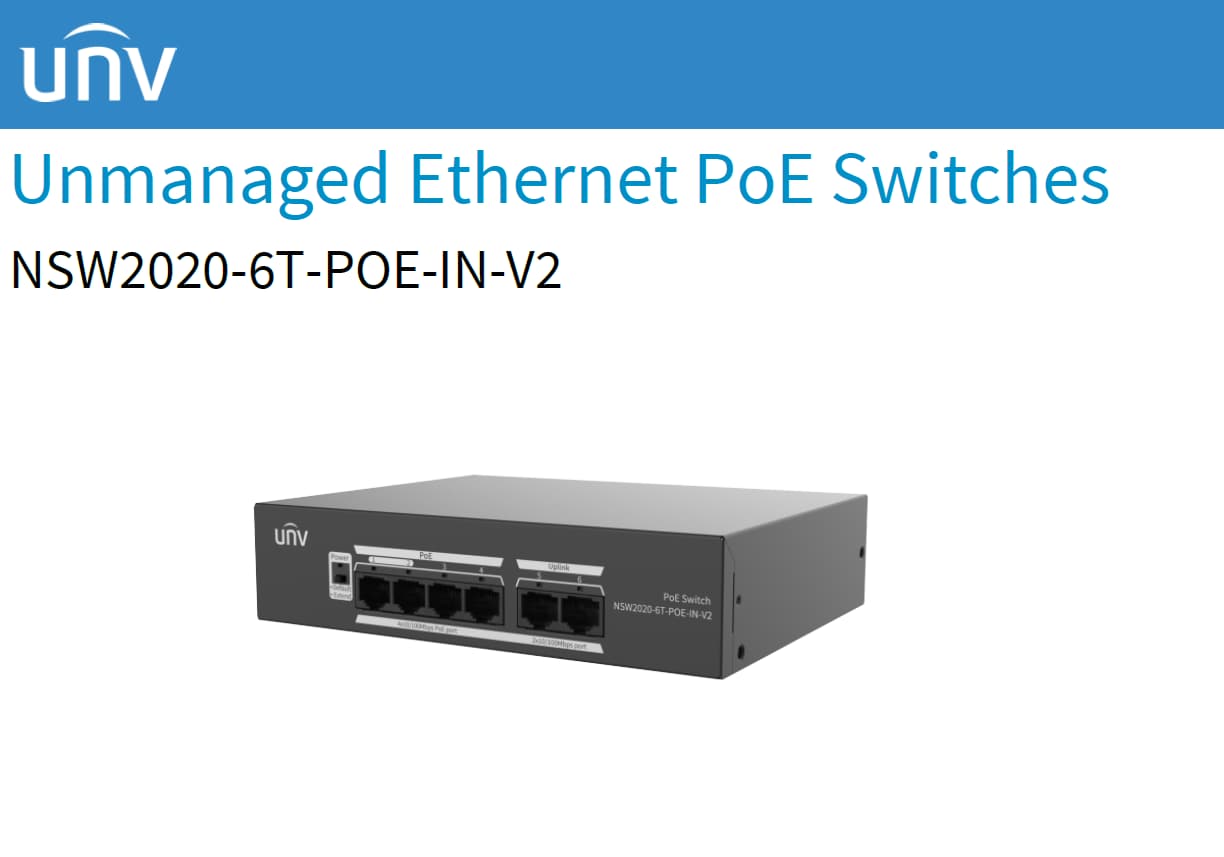

Uniview NSW2020-6T-POE-IN-V2 Unmanaged Ethernet PoE Switch

৳0

0.00/5 See Reviews

প্রোডাক্ট কোড : P0480

Brand : UNV

- +
ফেনীর ভিতরে ৭০ টাকা
ফেনীর বাহিরে ১৫০ টাকা

বিস্তারিত

Features
• Multiple working modes to address your business needs: Default (Normal mode), EXTEND (Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable

Hardware Specification
Ports Type: 6×100Mbps network ports (RJ45), including 4 PoE ports
Standards: IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching capacity: 1.2 Gbps
Packet Buffer: 570K bit
Forwarding performance: 0.90Mpps
MAC: 2K
Prior Ports: 1 to 2
Power Supply: AC100-240V, 50/60Hz
Max.PoE Power:
Max capacity:65W
Max capacity for single port: 30W
802.3at/af
Mode A: (1/2+,3/6-)
Mode B: (4/5+,7/8-)
Storage Temperature: -40 ℃ to 70 ℃
Operating humidity: 10%~90% (non-condensing)
Cooling Fans: 0
Weight: 0.65KG
Dimensions (W×D×H): 169*132*40mm
Storage humidity: 5%~90% (non-condensing)
Operating temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Indicator:
POWER Off: No AC input, Power On (Green): Normal power input, Power On (Yellow): The total
PoE power is higher than 85% of the total power of the device,
No PoE Indicator, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data
Working Mode: Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters
Max.Power: 75W
